Clinic Floor Plan Template



Save, fill-In The Blanks, Print, Done!

Click on image to zoom / Click button below to see more images


Adobe Acrobat (.pdf)

  • This Document Has Been Certified by a Professional
  • 100% customizable
  • This is a digital download (2508.13 kB)
  • Language: English
  • We recommend downloading this file onto your computer.



ABT template rating: 8

Malware- and virusfree. Scanned by: Norton safe website

How to create a
well-thought-of
Clinic Floor Plan? We make it easier by providing an example floor plan that you can easily customize to make a perfect one.

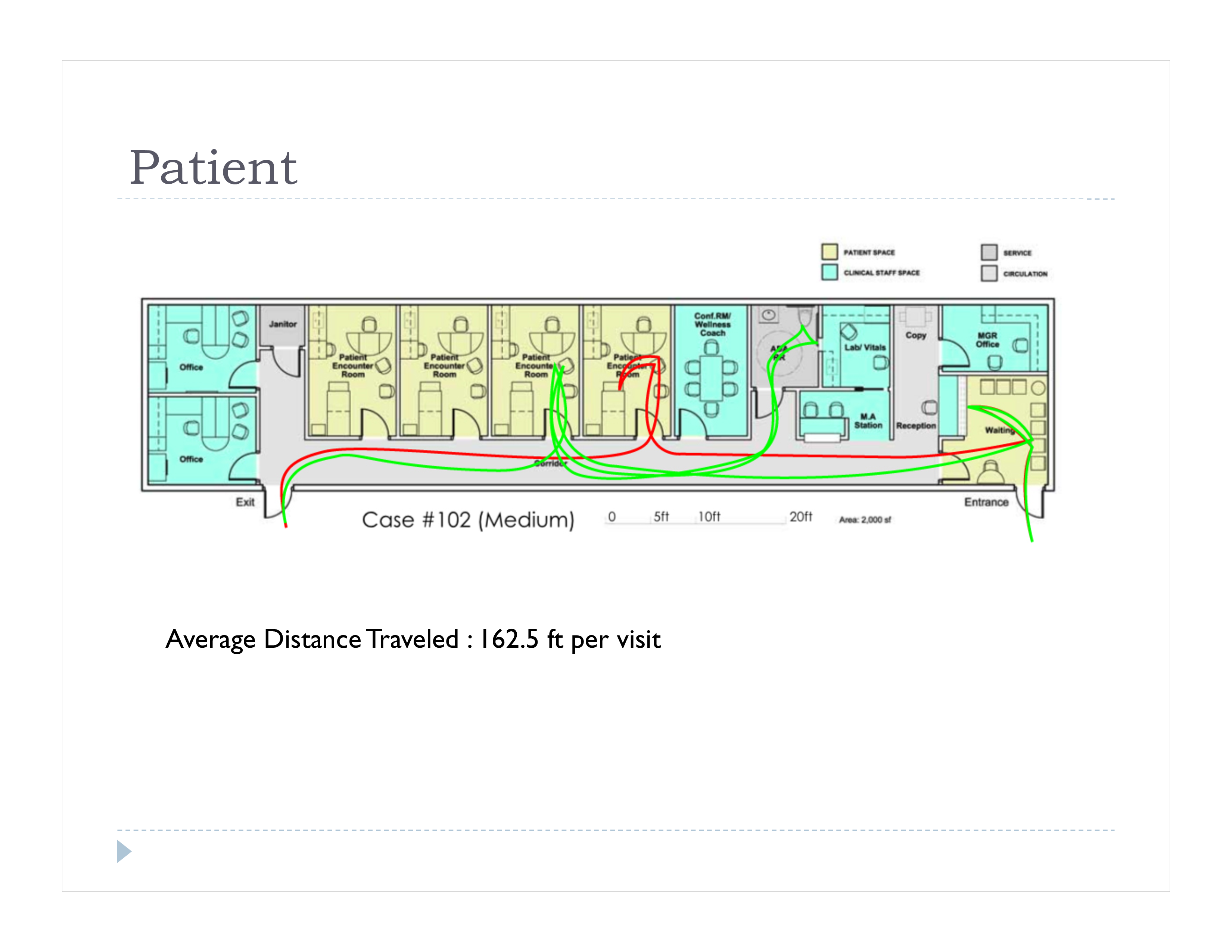

When working in the Real Estate industry, you know floor plans are very important and it can easily have big legal complications if you make small mistakes. Therefore, extra attention to floor plans. You will see that this medium sized healthcare clinic floor plan is check by professionals and that it can be easily customized (e.g. visuals, typography, etc) to fit your needs.

You will see you can print your file much faster than when you start from scratch! If you are running a real estate business, you will require this Clinic Floor Plan Template template.

Download this Clinic Floor Plan Template to customize it to your perfect version!

Sneak preview:

Lack of supply room – use Exam Room and Lab storage Exam Room Layout Analysis Siddharth Gupta, Rupal Deshmukh Exam Room Layout Adjacency •Encourage washing hands upon entry and exit Wash Basin Entrance •Simultaneous view of patient and monitor • Exam table and monitor proximity Literature Rack •Ease of access to literature rack from chair Care Provider Chair Exam Table Monitor Dimensions Exam Room: 10 x 12 Square Feet Work Triangle Analysis Work Triangle 1: Dimensions 6x6x4 Side 1: Exam Table-Chair Side 2: Chair- Wash Basin Side 3: Wash Basin-Exam table Work Triangle 2: Dimensions : 4x3x1.5 Side 1:Monitor-Literature Rack Side 2: Literature Rack-Chair Side 3: Chair-Monitor Recommendations  Blood Pressure Measurement Arm Chair Corner of the room  Interchange Positions: Literature Rack and Monitor Table, Chair Set Above changes reduce distances between     Exam Table-Chair Chair-Wash Basin Literature rack-chair + monitor.
